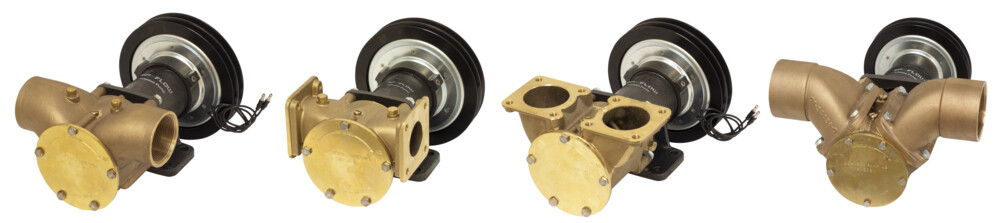

Extra Heavy Duty Electro-Magnetic Clutch Pumps - FB-5000
Product Type(s) : Flexible Impeller Pumps - Multi-purpose
Description :
WHERE TO BUY
With an Electro-Magnetic Clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.
FEATURES
- Limited 3 Year Warranty
- FxB-5xxx = Flexible Impeller Pump, Bronze body, 5 = Pedestal mounted with double ball bearings and mechanical seal, magnetic clutch operated
- TSS - The Space Saver - horizontal flanges in a space saving design
- VF - Vertical Flanges
- Automatically controlled pumps are available in sizes from 1" to 2½" (20 L/min to 625 L/min), with clutches in 12 or 24 volts.
- Wear parts are easily replaceable and service kits are available for all standard models.
- Vacuum Switch as extra accessory
- Note! Clutch to be ordered separately
Flexible Impellers - Operating Principle
- A vacuum is created as the flexible impeller vanes straighten upon leaving the cam, drawing liquid into the pump.
- The rotating impeller carries liquid from the inlet to the outlet port. As a consequence of their design, flexible impeller pumps can pass fairly large solids.
- When the flexible impeller vanes regain contact with the cam, they bend and the liquid is discharged from the pump in a uniform flow. Liquids can be pumped in the opposite direction by reversing the rotation of the pump.
