Ultima Bilge - Automatic Submersible Bilge Pumps

Product Type(s) : Submersible Bilge Pumps

Description :

Sleek, reliable and compact unit with integrated patented Ultima “field effect” sensing technology switch, ready to install and run for years and years of unerring service.

WHERE TO BUY

Limited 3 Year Warranty
Compact, all-in-one unit
Integrated Ultima Switch technology in the pump body for trouble-free, automatic operation
Available in capacities 600 GPH, 800 GPH, 1000 GPH and 1250 GPH
UltimaBilge 600 GPH, 800 GPH and1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
These pumps include both a straight and a 90° smooth ¾" elbow Dura-Port
UltimaBilge 1250 GPH includes threaded 1 1/4" & 1 1/8" discharge port
All version are delivered with a removable check valve
Voltage 12 V DC
No Mercury
Removable clip on basket design
Removable impeller cover allows for easy clean out
No tools needed for maintenance
Extremely energy efficient
Water-cooled motor for long service intervals
The Ultima Bilge pumps are 3-wire device and can be run in auto or manual override mode via the bilge control panel
Meets the international standard, ISO 8849 marine

Dimensions
Specifications

Dimensions

600, 800 & 1000 GPH

Length	142 mm – 6"
Width	82 mm – 3.2"
Height	105 mm – 4.1"
Weight	0.66 kg – 1.5 lb

1250 GPH

Length	142 mm – 6"
Width	82 mm – 3.2"
Height	117 mm – 4.6"
Weight	0.66 kg – 1.5 lb

Technical Data

Part No.	Part No. USA	Description	Capacity 3 ft (0.9 m) head (13.6V)	Capacity straight (13.6V)	Voltage	Amperage	Fuse Size	Connection
32-47258-008	32-47258-003	Ultima Bilge 600 GPH 12V with integrated switch	32 L/min - 500 GPH	38 L/min - 600 GPH	12 V	2.5 A	5 A	¾"
32-47259-008	32-47259-003	Ultima Bilge 800 GPH 12V with integrated switch	38 L/min - 600 GPH	51 L/min - 800 GPH		3 A	5 A	¾"
32-47260-008	32-47260-003	Ultima Bilge 1000 GPH 12V with integrated switch	44 L/min - 700 GPH	64 L/min - 1000 GPH		3.2 A	5 A	¾"
32-47261-005*	32-47261-002*	Ultima Bilge 1250 GPH 12 V with integrated switch	51 L/min - 800 GPH	79 L/min - 1250 GPH		3 A	5 A	1⅛" and1¼"
*) Does not include 1250 GPH Dura-Port connection

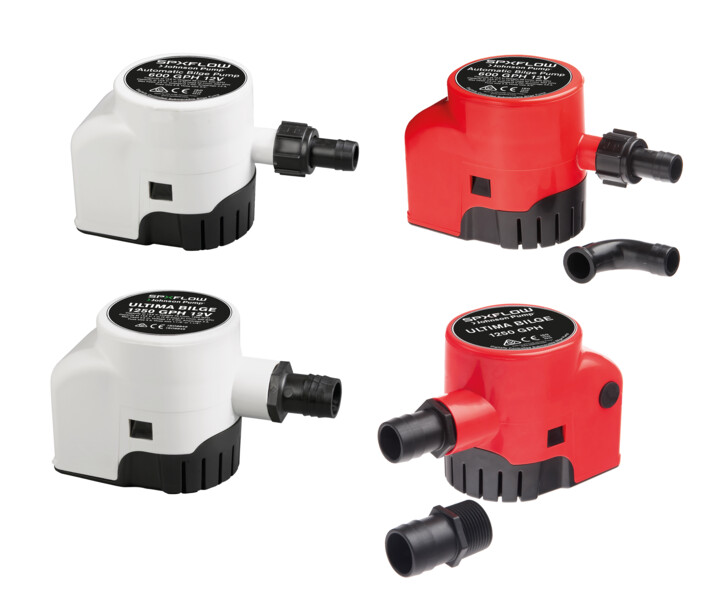

Note: Models sold in the US are white plastic; models sold in the rest of the world are manufactured in red plastic.

See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
