DISCONTINUED - 2 Way and 3 Way - Plug Valves
Product Type(s) : Valves
Description :
WHERE TO BUY

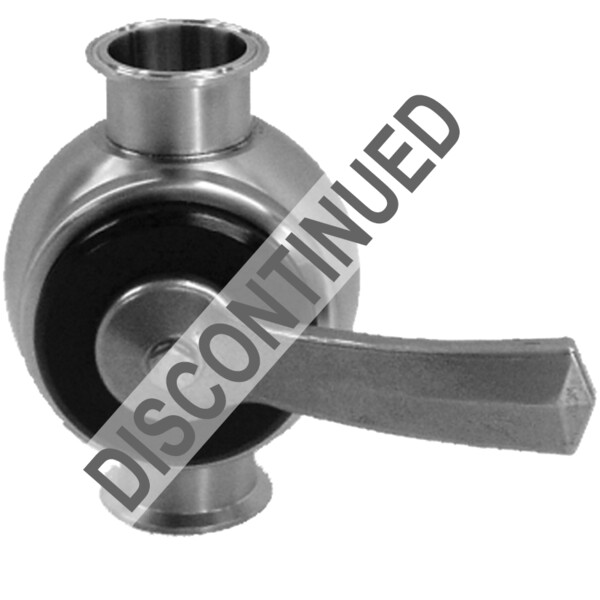

The Waukesha Cherry-Burrell 2 way (10C) and 3 way (11C) plug valves have been discontinued as of December 2020. These valves were approximately sold from 1970 to 2020.
SPX FLOW recommends upgrading or replacing your WCB plug valves with a 300/350 Series Ball Valve or W60 Series Single Seat Valve.
See below for dimensions and technical support information.
Contact SPX FLOW to inquire about spare parts.
DIMENSIONS & SPECIFICATIONS
| Callout | Valve Model |
Valve Size/Dimensions |
|||
|---|---|---|---|---|---|
| 1.5 | 2.0 | 2.5 | 3.0 | ||
| (38.1) | (50.8) | (63.5) | (76.2) | ||
| A | 10C M P-11C M P-10C M P R-11C M P R | 2.9 (73.7) |
3.4 (86.4) |
4.12 (104.6) |
4.71 (119.6) |
|
A |
10C M I-11C M I-10C M I R-11C M I R | 2.93 (74.4) |
3.37 (85.6) |
4.09 (103.9) |
4.71 (119.6) |
| A | 10C I-11C I-10C I R-11C I R | 2.93 (74.4) |
3.37 (85.6) |
4.09 (103.9) |
4.71 (119.6) |
| A | 10C Q-11C Q-10C QR-11C QR | 2.87 (72.9) |
3.37 (85.6) |
3.87 (98.3) |
4.50 (114.3) |
| A | 10C B-11C B-10C B R-11C B R | 2.90 (73.7) |
3.40 (86.4) |
4.12 (104.6) |
4.72 (119.6) |
| A | 10CW-11CW-10CWR-11CWR | 5.12 (130.0) |
5.59 (142.0) |
6.18 (157.0) |
6.75 (171.45) |
| A | 10C-11C-10C R-11C R | 2.90 (73.7) |
3.40 (86.4) |
4.12 (104.6) |
4.72 (119.6) |
| A | 10CWR-11CWR | 5.12 (130.0) |
5.59 (142) |
6.18 (157.0) |
6.75 (171.5) |
| B | ALL VALVE M O D E LS | 2.50 (63.5) |
2.88 (72.9) |
3.25 (82.6) |
3.62 (91.9) |
| C | ALL VALVE M O D E LS | 4.81 (122.2) |
4.62 (117.3) |
5.25 (133.4) |
5.68 (144.3) |
| D | ALL VALVE M O D E LS | 5.37 (136.4) |
5.37 (136.4) |
6.50 (165.1) |
6.50 (165.1) |
